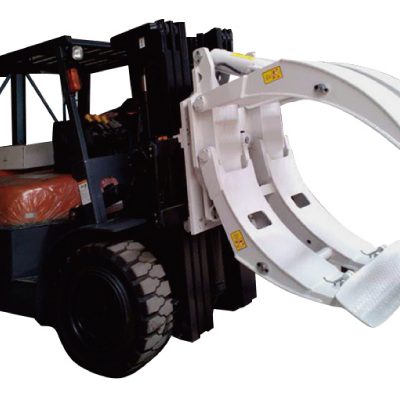

Electric Battery Forklift Truck with Paper Roll Clamp
Forklift Paper Roll Clamp for Sale

Economically and efficiently clamp and overturn any type of paper roll, roll film, wood, and the round bar, cables, cable rope, non-woven fabrics, yarn, cloth roll, coating cloth and other circular objects.
Paper roll clamp forklift is designed with optimized clamp arm and thinner pad to avoid damage while knifing in between rolls in containers, trailers and rail cars. Excellent visibility through the arms and frame allow for maximum productivity and minimum roll damage.

1. Novel structure and excellent driver visibility
2. Ultra thin clamp pad
3. Fixed or adjustable short arm
4. Fast arm speed
5. Durable heavy-duty revolving gear with ball bearing

Order number	1.08001	1.08002	1.08003	1.08004	1. 1.08005	1.08006	1.08007
Arm type	Solid long arm
Носивост (кг)	2200	2050	1950	2800	2550	2450	2150
Adjustable Roll range(mm)	200-1400	200-1525	200-1600	200-1400	200-1525	200-1600	200-1830
Long arm length(mm)	953	1013	1047	953	1005	1098	1230
Short arm length(mm)	623	685	723	624	695	739	845
VCG(mm)	362	362	362	429	429	430	431
ЕТ (мм)	228	228	228	195	195	195	195
HCG(mm)	294	322	328	267	283	285	326
Weight(Kg)	617	638	650	733	761	778	849

Advantage

High quality material with compact structure.
Heavy duty design with highquality, small weight and dimension make it smart.
High-capacity battery, long-lasting and robust.
Safe and reliable operation.

Видео

Брзи детаљи

Стање: Ново
Место порекла: Фујиан, Кина (копно)
Бренд: ХУАМАИ
Тип: Погонски виљушкар
Повер Соуце: АЦ мотор
Rated Loading Capacity: 2200Kgs
Макс. Висина подизања: 3000мм
Min. Lifting Height: 10mm
Дужина виљушке: 1070мм
Ширина виљушке: 122мм
Overall Dimensions: 2600*1100*2150mm
Certification: ISO9001,CE and SGS
Product Item: Forklift Paper Roll Clamp for Sale
Power Form: Battery
Load Capacity: 2.2ton
Reach Distance: 550mm
Rising Height: 3000mm
Powered electric forklift Fork Size: 1070*122*35mm
Certifications: ISO9001,CE and SGS
